دريل بادی اتوماتيک بادی۱/۴ مدل ۸۲۵۸-C28-2

اشتراک گذاری

دريل اتوماتيک بادی۱/۴ -۸۲۵۸-C28-2 ساخت کمپانی ARO آمریکا

سرعت ۲۸۰۰ دور

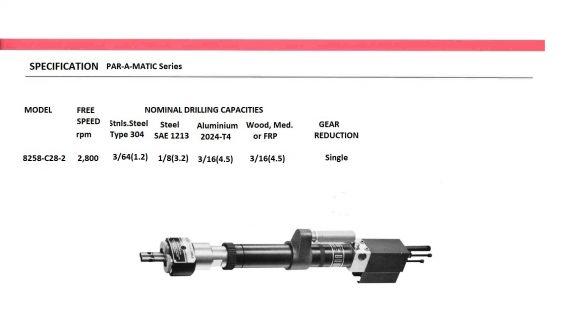

ARO 8258-C28-2 Self-Feed Twin Drill | 1/4″ Capacity | 0.50 HP | 2,800 RPM

Pneumatic Self-Feed Twin Drill

  • Model: 8258-C28-2
  • Manufacturer Part Number: 8258-C28-2
  • Sound Level dB(A): 74
  • Air Consp. @ Working Speed ft^3/cycle (L/cycle): 2.3 ( 65 )
  • Nominal Drilling Capacities Wood, Med. or FRP: 3/16 (4.5)
  • Stroke Lengths: 2.0″ (51mm)
  • Thrust @ 90 PSI lb. (N): 170 lbs.
  • Free Speed rpm: 2800
  • Nominal Drilling Capacities Stnls. Steel Type 304: 3/64 (1.2)
  • Nominal Drilling Capacities Steel SAE 1213: 1/8 (3.2)
  • Nominal Drilling Capacities Aluminum 2024-T4: 3/16 (4.5)

Penumatic Twin Drill

Self Feed Twin Drills are ideal for many close center machining problems. But even more important, ARO Twin Drills significantly reduce machining time and parts handling while improving quality

ARO Twin Drills perform two machining operations per cycle for holes with center distances from 3/8″ to 3 3/4″. They’re ideal for many closecenter machining problems. But even more important, ARO Twin Drills significantly reduce machining time and parts handling while improving quality.

Three series of standard tools are available, equipped with adjustable dual spindle heads. Like the other ARO Automatic Production Tools, each Twin Drill is a completely self-contained unit with built-in cycle, feed rate, and motor controls. They can be operated individually or in conjunction with other tools and machine components.

Adjustable spindles allow reapplication as machining requirements change

  • Comprehensive range of American and metric collets available to meet a wide variety of hole specifications
  • Double-acting air piston provides smooth, controlled forward and retract strokes
  • Needle valve controls allow adjustment of forward and retract strokes
  • Adjustment screw provides infinite stroke length settings up to 3.0″ maximum
  • Muffled exhaust for a quieter work environment
