سه نظام تراشکاری TOS

سه نظام تراشکاری M1و -2-160/3کمپانی  TOS ساخت جمهوری چک

product description

IUS chucks are supplied in 3, 4 and 6-jaw versions, in two accuracy classes with standard jaws ending in M1, A, B, D. Set of standard jaws (a set of hard outer jaws marked SCV and a set of hard inner jaws marked SCN) allows a wide range of chucks to be used.

160/3-2-M1

Max. 3500min

• chuck body – ductile cast iron
• functional surfaces ground, ensure clamping accuracy and extend the life of the chuck
• from size ø160, hardened and ground steel pins are inserted to guide the jaws

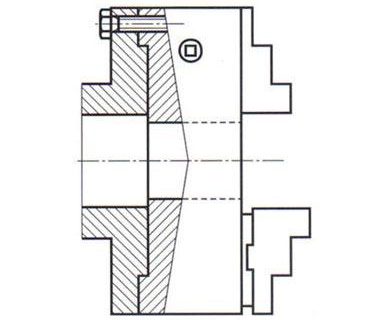

• clamping the chuck to the machine spindle using an intermediate flange according to ČSN 243801

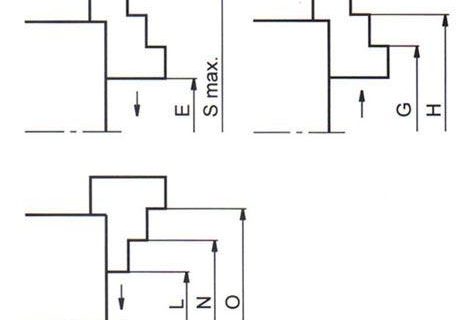

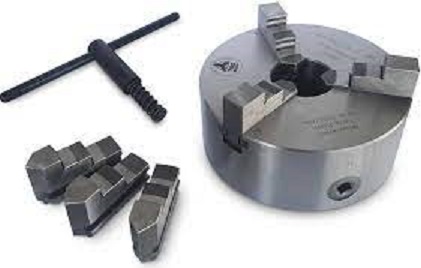

• 1 set of SCV hard outer jaws, 1 set of SCN hard inner jaws
• 1 key, clamping screws
